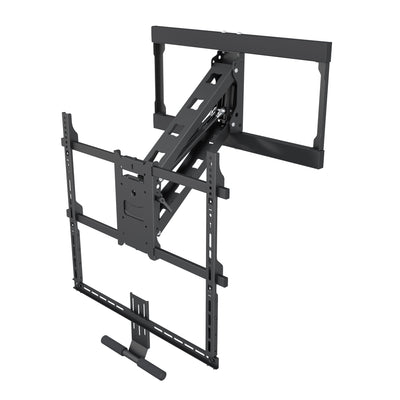

Above Fireplace Pull-Down TV Wall Mount for 42" to 65" TVs - FM100

$199.00
SKU: 97C19510

Product Dimensions: Depth: 20.25", Height: 33.25", Width: 27",

The FM100 pull-down TV mount allows for effortless vertical positioning of your TV. Designed to be installed above a fireplace or mantel, its adjustable gas-shock arm reaches down 29" to achieve eye-level viewing while seated. Swivel your TV up to 60° and tilt it 15° to further improve line-of-sight and reduce glare. The FM100’s dual-stud wall plate safely supports up to 65" screens weighing 11 to 62 lb., and can be installed on wood stud, concrete or brick walls.

Product Dimensions: Depth: 20.25", Height: 33.25", Width: 27",

Unique Features

  • Easy Vertical Adjustments: Equipped with a padded handle for ease of use, the FM100’s gas-shock arm allows you to pull your TV down 29" (73.7 cm), with up to 20.2" (51.3 cm) of horizontal clearance. Use it to improve line-of-sight with your TV in areas that require a higher than eye-level installation. The maximum vertical distance can also be adjusted to avoid contact with your mantel.
  • Improved Viewing: The FM100 offers up to 30° of swivel in either direction, and comes equipped with a quick-tilt mechanism that provides +10° to -5° of tilt. Easily position your TV to accommodate angled seating arrangements and to reduce glare.
  • Clean Appearance: Maintain a tidy living space by raising your TV out of the way when not in use. Plastic wall plate covers are included to hide any sign of installation, while cable management clips and three zip ties are provided to conveniently route your cables.
  • Sound Bar Compatible: Complete your low-profile AV setup by attaching a sound bar to the bottom of the VESA-compliant mounting brackets. Several mounting slots are provided to ensure compatibility with various sound bar models. Hardware not included.
  • Easy Installation: Along with a labeled hardware bag with all the bolts, washers and spacers you’ll need, the FM100 comes with a paper wall template and dust tray to ensure your installation is accurate and mess-free.

MPN: FM100

Other Dimension: Box Dimensions: 28.4" x 15.6" x 5.1" (72.2 x 39.5 x 13 cm)

UPC: 800152719061

Warranty: Five-year manufacturer's warranty.

Weight: 31.5 lb.

Convenience Features:

  • Fits most flat panel TVs from 42" to 65".
  • Supports TVs from 11 lb. (5 kg) to 61.7 lb. (28 kg).
  • Accommodates VESA sizes from 100x100 to 600x500.
  • Accessible tilt mechanism provides +10° to -5° of tilt.
  • 30° of swivel in either direction, depending on screen size and mantel depth.
  • Sits 4.7" (12 cm) and provides 20.2" (51.2 cm) of clearance.
  • Adjustable gas-shock arm provides 29" (73.7 cm) of vertical range.
  • 26.8" (68 cm) dual stud wall plate accommodates up to 24" stud spacing.
  • Includes manual and all mounting hardware for wood stud and concrete installation.

Included:

  • Mount
  • Mounting Hardware
  • Drill Template
  • User Manual
