Low Profile Recessed In-Wall Full Motion TV Wall Mount for 32" to 55" TVs - R300

0 Reviews
SKU: 97C19525
Special Order
$249.00
$0.00
or
Flexiti Financing
$10.38 + taxes/fees With 24 month financing
Enjoy Peace of Mind with your new electronics purchased from Leon's. Add in cart. L2 Platinum Coverage. More Details.

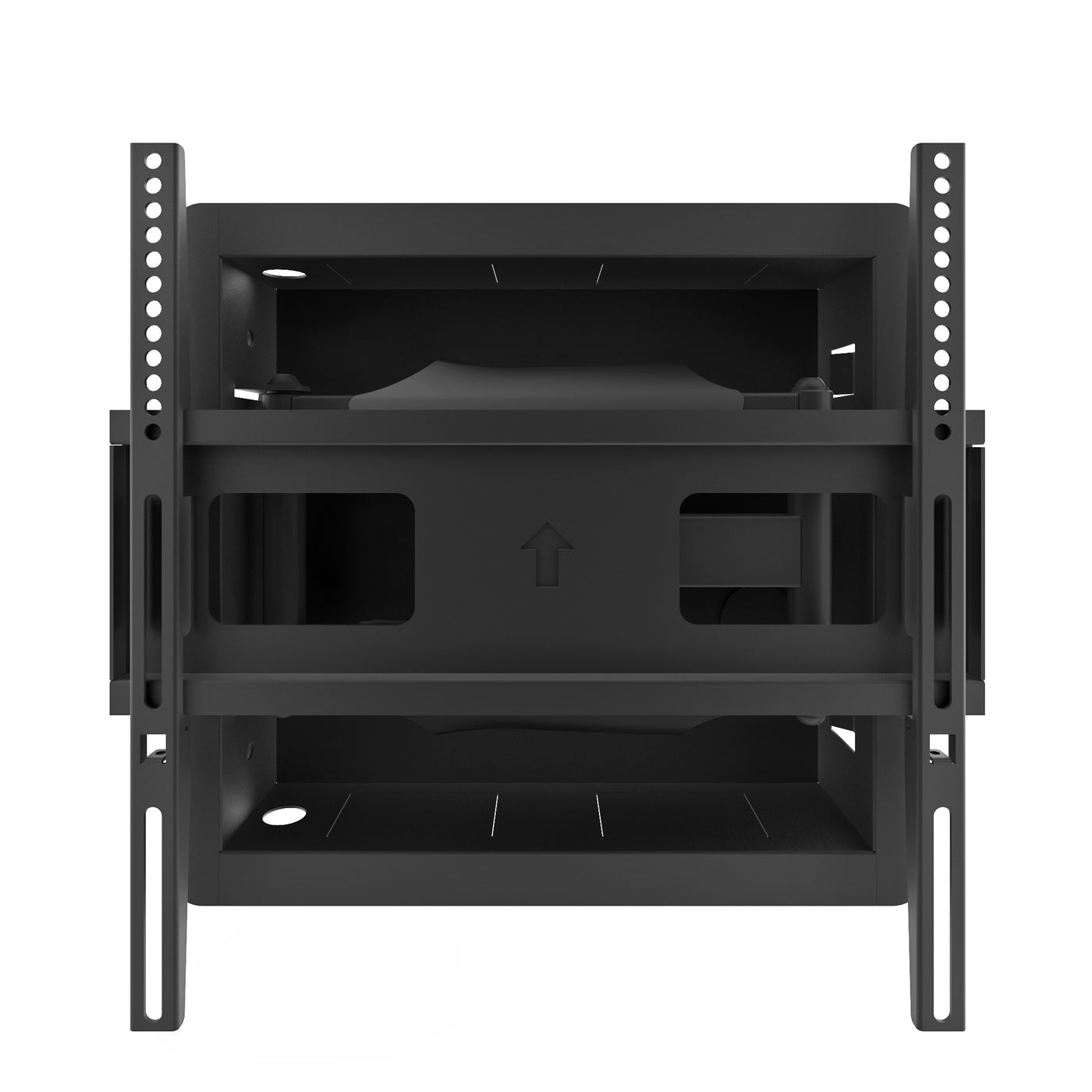

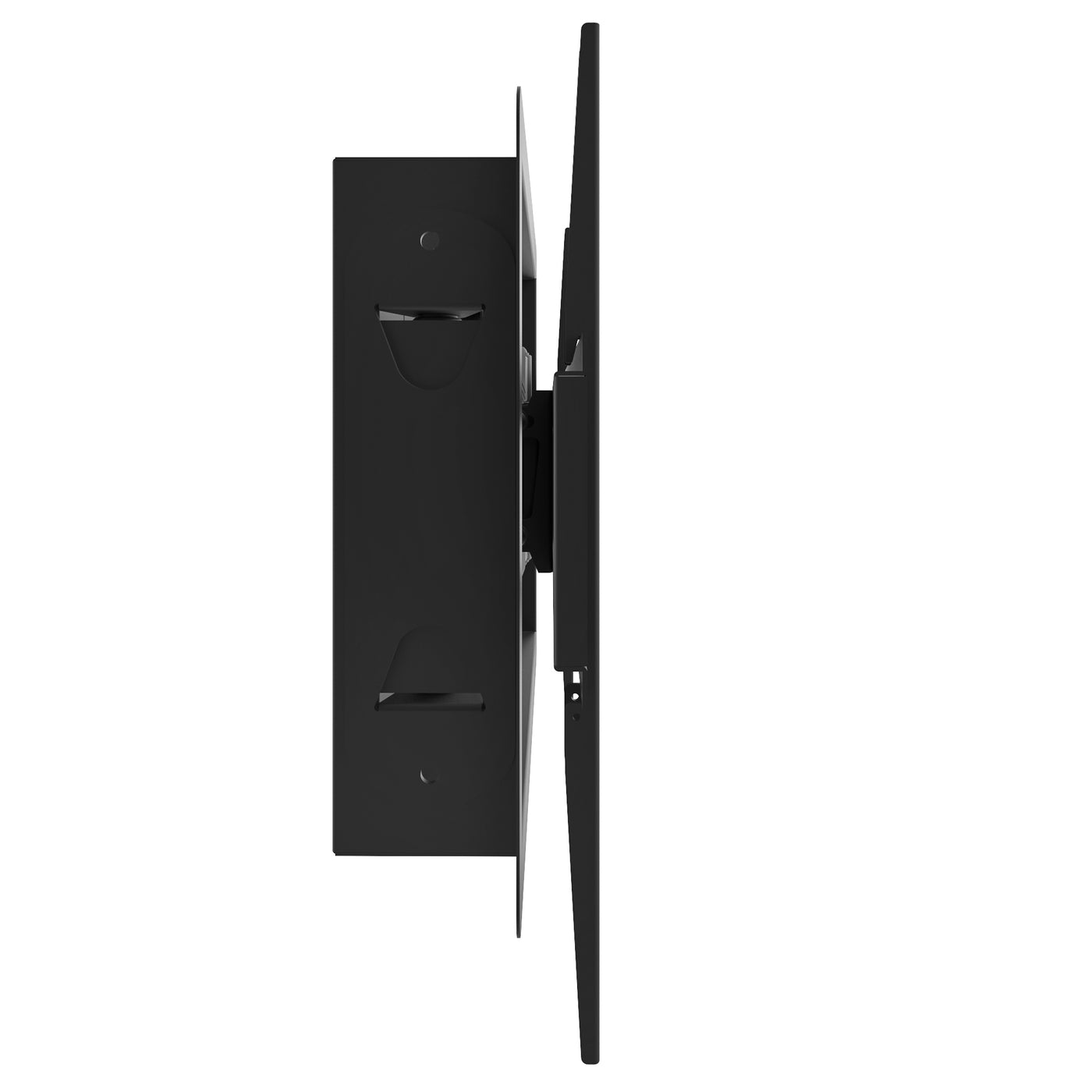

Achieve an ultra-low-profile setup with the R300 recessed wall mount. Designed to be inserted between two studs measuring 16" apart, this unique mounting solution lets your TV sit 1.25" from the wall when fully retracted. Its 18.5" long articulating arm provides -5°/+10° of tilt and 180° of swivel, ensuring optimal viewing from all angles. Built out of high-grade steel, the R300 supports 32" to 55" TVs weighing up to 80 lb.
Dimensions
16.5″(42cm)
Width
17.75″(45cm)
Height
22″(56cm)
Depth

Unique Features

  • The R300’s in-wall design is made to fit securely between 16" stud centres. When fully retracted, its arm assembly allows your TV to sit almost flush with the wall.
  • Constructed out of solid steel, the R300 safely supports 32" to 55" TVs weighing up to 80 lb., while its adjustable mounting brackets accommodate VESA sizes between 100x100 and 400x400.

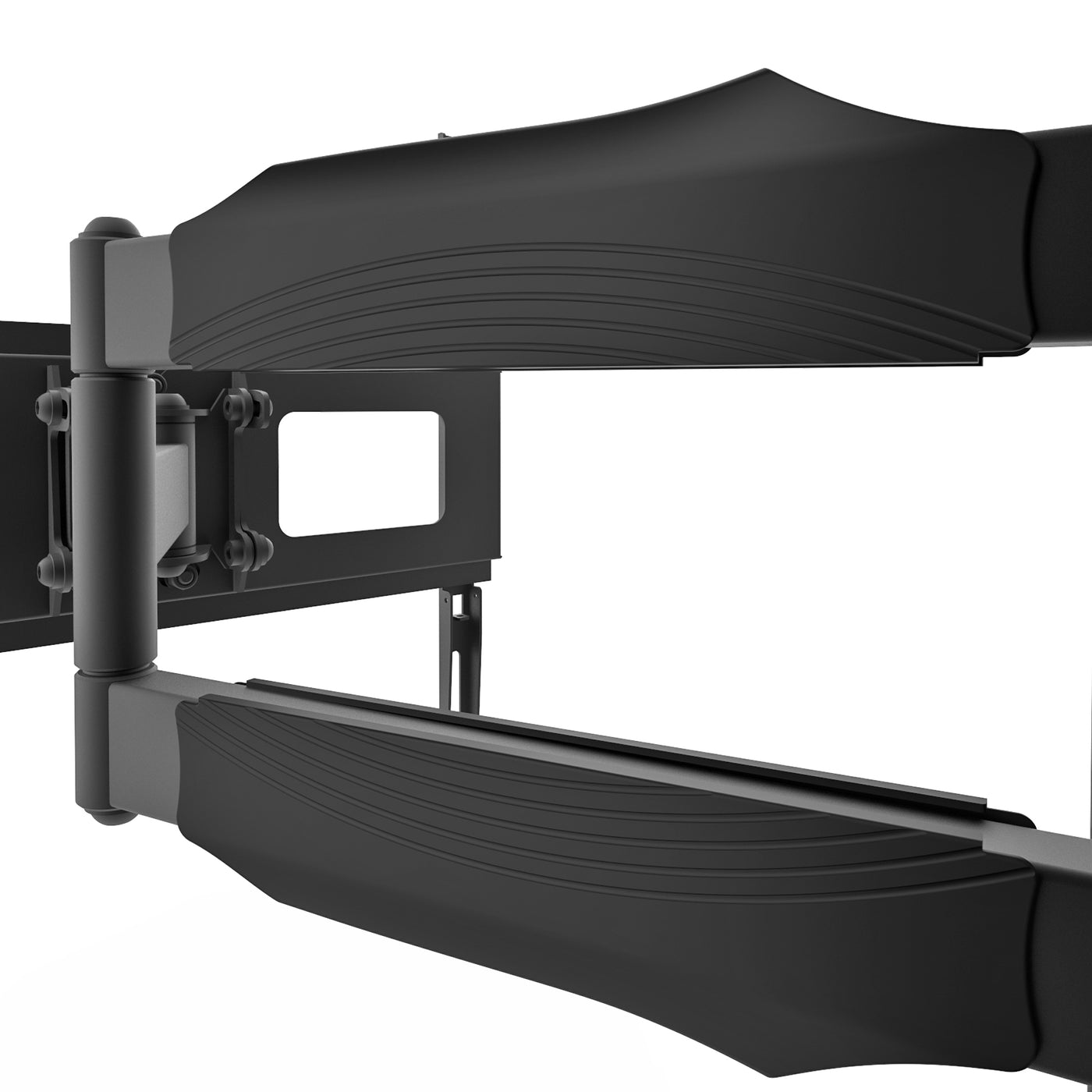

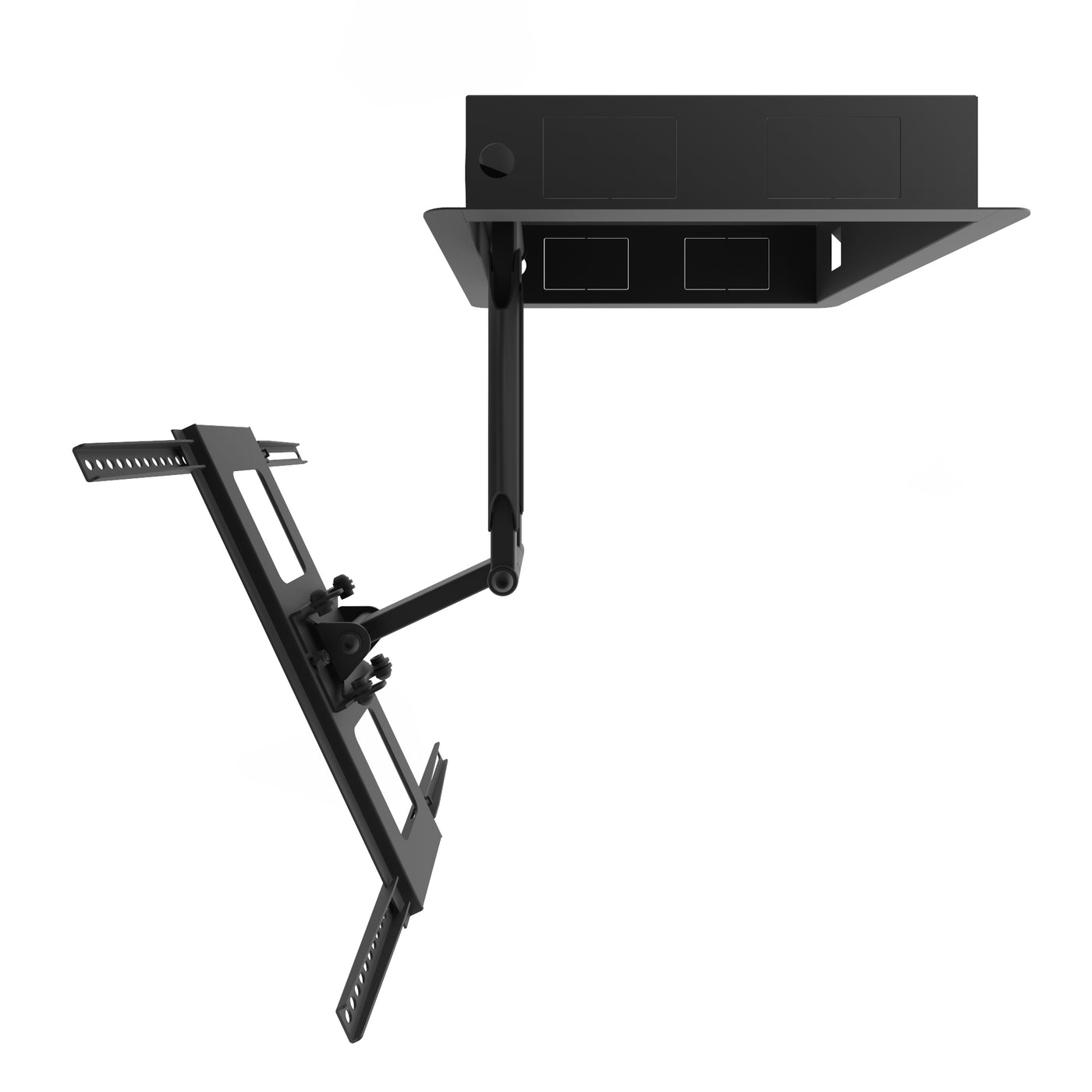

  • Use the R300’s articulating arm to ensure you always have the perfect viewing angle. Extend it out 18.5" to provide ample room to tilt and swivel your TV.
  • Keep your viewing area tidy by securing your cables to the mounting arm with the provided clips.
  • Because every installation is unique, the R300 is carefully packaged with all the lag bolts, washers and spacers that you could need. An online installation video is also provided to help you along the way.

Specifications

Dimensions
16.5″(42cm)
Width
17.75″(45cm)
Height
22″(56cm)
Depth
Other Dimensions:
Box Dimensions: 19.3'' x 16.5'' x 5.5'' (49 x 42 x 14 cm)
MPN:
R300
UPC:
800152717456
Warranty:
Five-year manufacturer's warranty.
Weight:
22 lbs
Convenience Features:
  • Fits most flat panel TVs from 32" to 55".
  • Supports TVs up to 80 lb. (36 kg).
  • Accommodates VESA sizes from 100x100 to 400x400.
  • Accessible tilt mechanism provides a +10° to -5° viewing angle.
  • 90° of swivel in either direction, depending on screen size.
  • Sits 1.25" (3.2 cm) and extends up to 18.5" (46.9 cm) from the wall.
  • In-wall box measures 14.4" (36.5 cm) wide by 13" (33 cm) tall by 3.5" (8.9 cm) deep, perfect for 16" wood stud installation.
  • Solid steel construction with durable powder coated finish and integrated cable management.
  • Installation manual and all mounting hardware for wood studs is included.

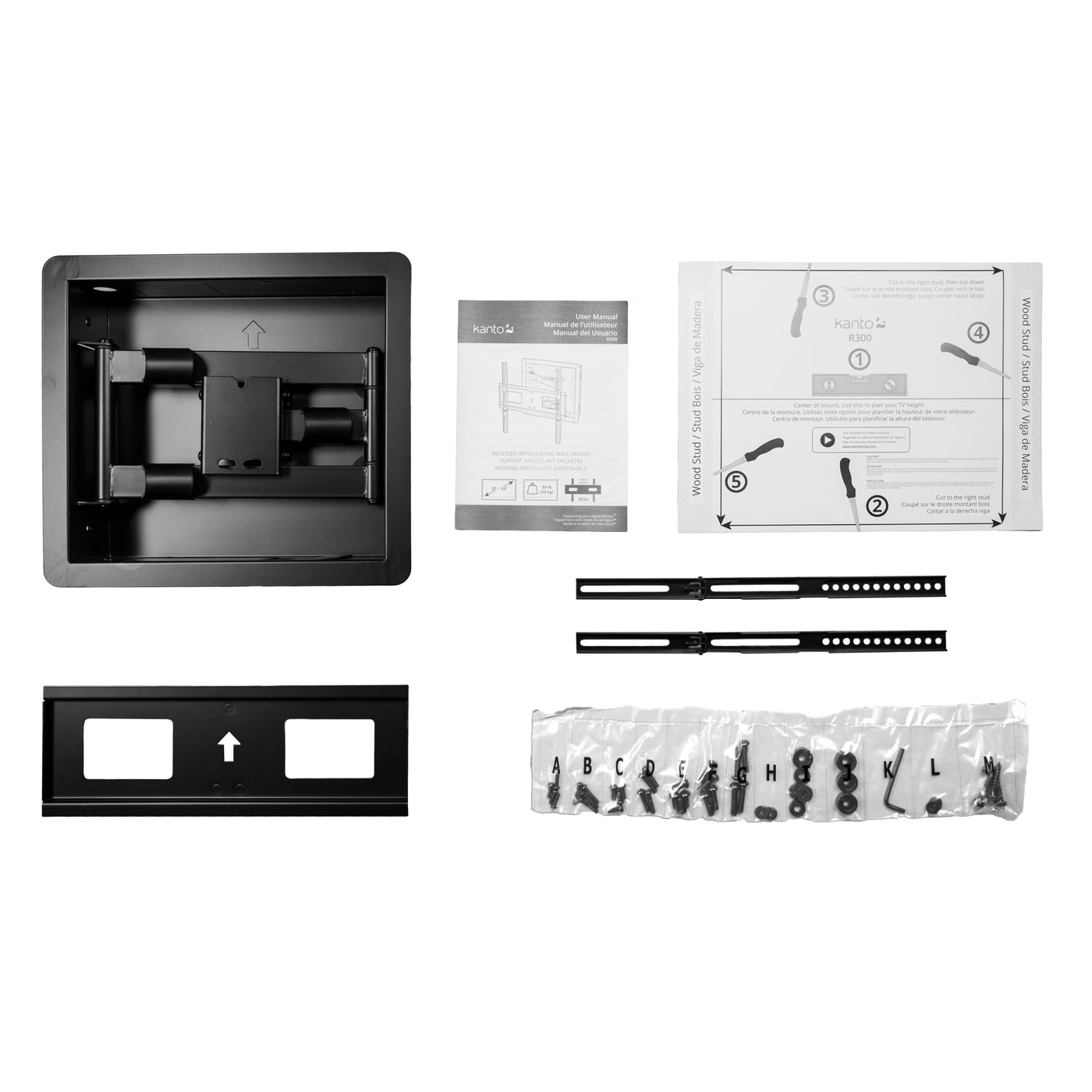

Included:
  • In-wall Box
  • Mount Arms
  • TV Plate
  • Mounting Hardware
  • User Manual
